China Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm factory and manufacturers

Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm

Short Description:

Place of Origin:	China
Brand Name:	Skypro
Certification:	ROHS/Reach/SGS
Model Number:	SP22-56

Payment & Shipping Terms:

Minimum Order Quantity:	200.sqm
Price:	negotiable
Packaging Details:	olls,inner foam+ outer abrasion resistant canvas with hard cardboard tube inside
Delivery Time:	15days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 sq.m/day

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Name:	Golf Treadmill Belt	Load Capacity:	Strong
Color:	Black	Working Temperature:	-20℃/+80℃
Tensile Strength:	160N/mm	Type:	Transmission Belt
Elongation 1%:	8N/mm
High Light:	PVC conveyor belting , plastic conveyor belt

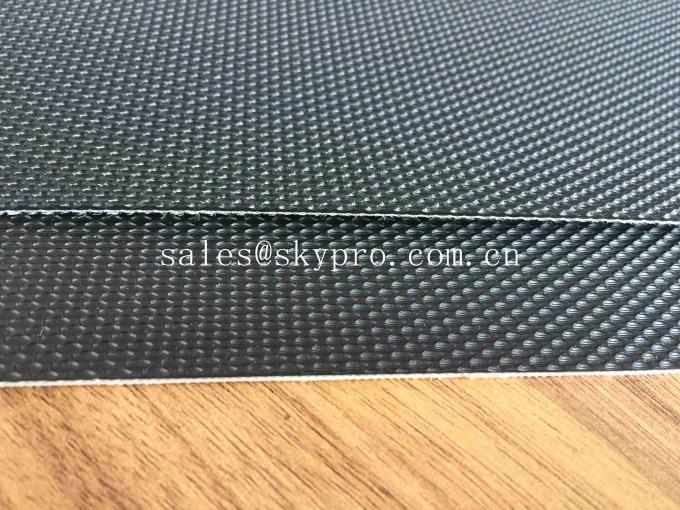

1.85mm Abrasion Resistant Balck Golf Treadmill Belt Surface Conveyor Belts

Product name	Treadmill Conveyor Belt
Product Patterns:	Flat, Grass, Golf, Diamond, Matte surface finish, Small round particles and etc.
Product structure	Structure	Two plies cloth two plies pvc
	Color	Black
	Fiber layers	2 plies
	Fiber class	Laterial stability polyester
	Surface material	PVC
	Surface pattern	Golf
	Bottom material	Conductive polyester textile
Technical index	Total thickness	2.1mm
	Surface coated thickness	0.7mm
	Weight	2.3kg/m2
	Maximum width	2000mm
	Elongation 1% force	8N/mm
	Tensile strengh	160N/mm
	Hardness shore A	75
	Working temrature	-10~+90℃
	Minimum drum diameter	25mm
	Lateral stability	Yes
Note	white, black, green, dark green,transparent, grey and all the colors at your request

Features:

lLow Noise, Flame Retardant

lHigh Abrasion Resistance

lPlasticizer Free

lExcellent Matching Printing

Advantages:

1. high strength, thin belt body, light weight

2. soft belt body into a good groove, good elasticity

3. impact resistance, wear resistance, corrosion resistance

4. applied in larger load, faster speed and long-distance transport of materials

5. smoothly motion, no deviation.

Packing and transportation:

Packing way	Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients
Packing material	Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary
Shipping marks	Neutral packing with printed marks.
Delivery time	15 days since receipt of PO and down payment
Freight	Sea(FCL & LCL) or air freight
Special size	We provide cutting services for special sizes
Lamination	We provides extra lamination with PSA, textiles or other materials.

FAQ(Frequently Asked Questions)1. What is the capability of your company ?Skypro is a professional manufacturer of rubber sheet for more than two decades.Top 10 biggest rubber factory in China.2.What is production capability each year?We produce more than 18000 tons of rubber sheet products each year.3.How can I get some samples?We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.

our rubber is free of heavy metal and other hazardous ingrediants with ROHS/SGS certifical
